PRODUCTS
Asia, the Middle East, Europe, North and South America,
in the field of industrial valves such as Africa
It's a global company that leads the global market
Product Description
Product Specifications
MATERIAL
Materials suitable for working condition must be adopted for low temperature VALVE.
Especially in petrochemical industry, the types of fluids to be processed are different according to each section even in the same plants.
At the same time, the temperatures used are also different.
A full consideration must be paid to the selection of material.
BODY AND BONNET
As for the materials constituting the low temperature valve, special consideration must be paid to the materials used at pressure parts as in the case of body and bonnet.
BODY MATERIAL |
SERVICE TEMPERATURE |
BOLT |
NUT |
|
℉ |
℃ |
|||
CARBON STEEL (GRADE LCB) |
-50 |
-46 |
A320 GR. L7 |
A194 GR. 4 |
C-1/2 Mo (GRADE LC1) |
-75 |
-59 |
A320 GR. L7 |
A194 GR. 4 |
2 1/2 NI (GRADE LC2) |
-100 |
-73 |
A320 GR. L7 |
A194 GR. 4 |
3 1/2 NI (GRADE LC3) |
-150 |
-101 |
A320 GR. L7 |
A194 GR. 4 |
TYPE 304 (GRADE CF8) |
-425 |
-254 |
A320 GR. B8 |
A194 GR. 4 |
TYPE 304 (GRADE CF3) |
-425 |
-254 |
A320 GR. B8 |
A194 GR. 4 |
TYPE 316 (GRADE CF8M) |
-425 |
-254 |
A320 GR. B8 |
A194 GR. 4 |
TYPE 316L (GRADE CF3M) |
-425 |
-254 |
A320 GR. B8 |
A194 GR. 4 |
TRIM
Following the body and bonnet, selection of materials for main parts such as stem, seat ring, and gland is very important. We adopt austenite stainless steel.
PACKING
Teflon or other plastic packing protecting from shinkage by large cloumn of insulating gas.
SEATING SURFACE
Stellite 6 for all medium and high pressure application prevents seizing and galling.
BOLT AND NUT
Material for bolts at low temperatures requires especially strength. Therefore, rigidity at low temperature is demanded and brittleness at low temperature of steel material can be improved generally by heat treatment. We use it according to ASTM standard.
TABLE OF LIQUEFIED GASSES
TYPE |
BOILING POINT |
|
℉ |
℃ |
|
NATURAL GAS, LNG |
- 270 |
- 168 |
METHANE, CH4 |
- 258 |
- 162 |
OXYGEN, O2 |
- 296 |
- 183 |
ARGON, AR |
- 303 |
- 186 |
CARBON DIOXIDE, CO2 |
- 314 |
- 192 |
NITROGEN, N2 |
- 320 |
- 196 |
HYDROGEN, H2 |
- 423 |
- 253 |
HELIUM, HE |
- 452 |
- 269 |
PRODUCTION MATERIALS
ASTM : A351-CF8, CF8M, CF3, CF3M or Equivalent
UNIT : NPS
|
150 |
300 |
600 |
900 |
1500 |
2500 |
GATE |
2 - 60 |
2 - 48 |
2 - 36 |
2 - 24 |
2 - 16 |
2 - 16 |
GLOBE |
2 - 36 |
2 - 36 |
2 - 30 |
2 - 20 |
2 - 12 |
2 - 12 |
SWING CHECK |
2- 48 |
2 - 48 |
2 - 36 |
2 - 24 |
2 - 16 |
2 - 16 |
BALL |
1/2 - 60 |
1/2 - 60 |
1/2 - 48 |
1/2 - 36 |
1/2 - 24 |
1/2 - 16 |
BUTTERFLY |
2 - 52 |
|
|
|
|
|

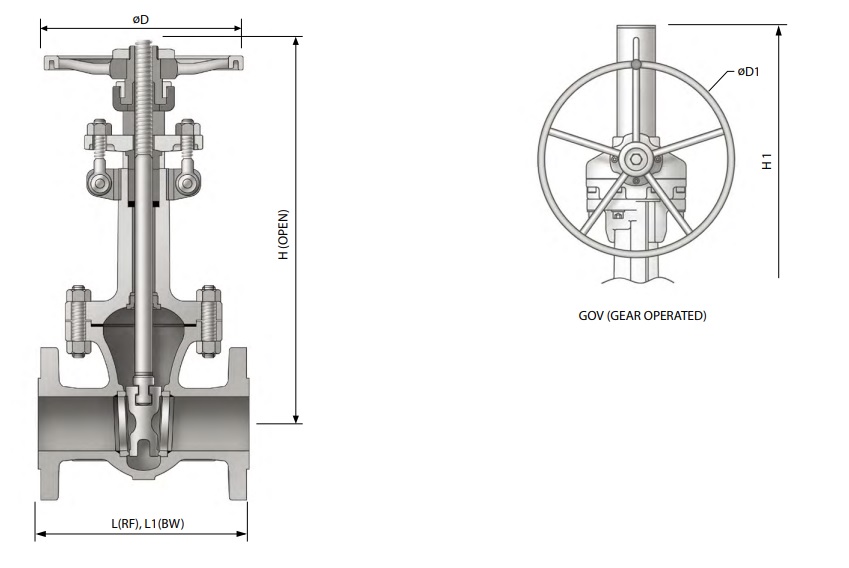

GATE VALVE

END CONNECTION
- R.F FLANGED ENDS TO ASME B16.5
- B.W. ENDS TO ASME B16.25
- R.T.J FLANGED ENDS TO ASME B16.5
- SIZE 26" AND LARGER, FLANGED ENDS ACCORDING TO ASME B16.47 SER.A OR SER.B
- CONSULT US FOR LARGER SIZE

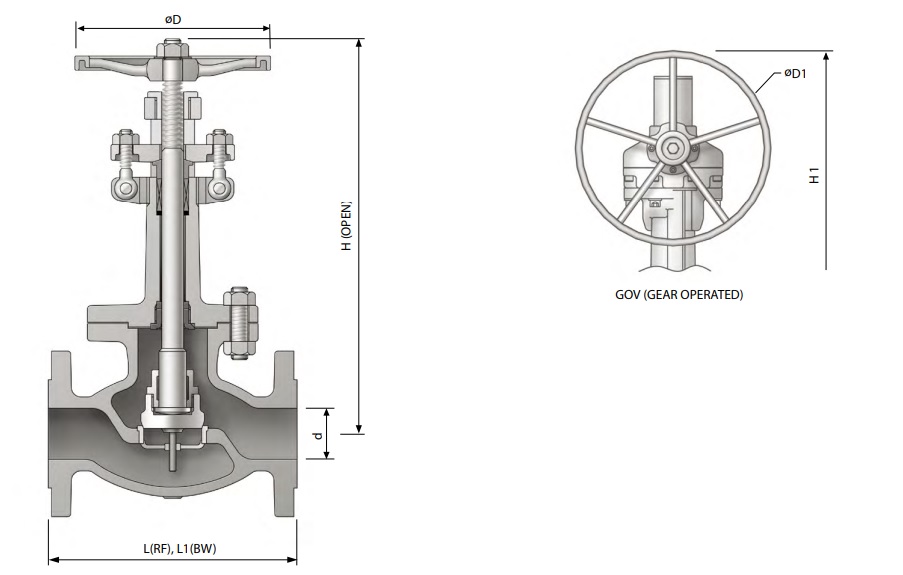

GLOBE VALVE

END CONNECTION
- R.F FLANGED ENDS TO ASME B16.5
- B.W. ENDS TO ASME B16.25
- R.T.J FLANGED ENDS TO ASME B16.5
- SIZE 26" AND LARGER, FLANGED ENDS ACCORDING TO ASME B16.47 SER.A OR SER.B
- CONSULT US FOR LARGER SIZE
SWING CHECK VALVE

END CONNECTION
- R.F FLANGED ENDS TO ASME B16.5
- B.W. ENDS TO ASME B16.25
- R.T.J FLANGED ENDS TO ASME B16.5
- SIZE 26" AND LARGER, FLANGED ENDS ACCORDING TO ASME B16.47 SER.A OR SER.B
- CONSULT US FOR LARGER SIZE
BUTTERFLY VALVE
